Distillation
GATE CH Guide

Flash distillation, McCabe-Thiele stage counting, reflux ratio, reboiler duty, and azeotropes for the GATE Chemical Engineering paper.

Linked Calculator

Antoine →

Overview

Distillation is the workhorse separation technique of the process industries, and within the Mass Transfer section of the GATE CH syllabus it's the single most numerically-tested subtopic. It separates a liquid mixture based on differences in volatility, how readily each component vaporizes, and everything in this guide builds toward one graphical technique: the McCabe-Thiele method for designing (or analyzing) a binary distillation column stage by stage.

The syllabus starts with flash distillation (a single equilibrium stage, solved with a mass balance and the equilibrium relationship together), then moves to continuous multi-stage columns. McCabe-Thiele analysis reduces the column to two straight operating lines (rectifying and stripping sections) plotted against the equilibrium curve on a y-x diagram, with the feed condition (q-line) connecting them, stepping between the operating lines and the equilibrium curve counts the theoretical stages needed for a given separation. Reflux ratio, minimum reflux, and the Fenske-Underwood-Gilliland shortcut method for multicomponent systems extend the same core ideas.

This guide assumes comfort with vapor-liquid equilibrium fundamentals (relative volatility, the Antoine equation, bubble/dew point) from the parent Mass Transfer guide, if those feel shaky, work through that guide's VLE section first, since every distillation numerical starts by establishing the equilibrium curve before any stage-counting begins.

Real GATE CH PYQ Frequency (2024–2026)

2024202520263-Yr Avg
2211.7

Computed directly from 5 real questions tagged to this topic across our GATE CH 2024–2026 archive, averaging 1.7 questions/year. Browse the underlying 5 questions for this topic in the PYQ archive, or see the full topic weightage comparison across all topics.

GATE Weightage

Distillation typically contributes 2–4 questions (about 4–7 marks) within the broader Mass Transfer section of the GATE CH paper, one of the highest-yield individual subtopics on the whole exam.

Sub-areaApprox. Marks
McCabe-Thiele graphical stage counting~1–2
Reflux ratio & minimum reflux~1–2
Flash distillation & Rayleigh (differential) distillation~1
Multicomponent shortcut methods & azeotropes~0–1

Sub-area split is a directional estimate (our archive doesn't tag marks at this granularity), for the real, computed topic-level total, see "Real GATE CH PYQ Frequency" above.

Key Subtopics

1

Flash distillation

A single equilibrium-stage separation, feed partially vaporizes, and the liquid and vapor products leave in equilibrium with each other, solved via a combined mass balance and equilibrium relationship (the "flash" or "operating" line).

2

Rayleigh (differential) distillation

Batch distillation where liquid composition changes continuously as vapor is removed, integrated using the Rayleigh equation, distinct from the steady-state flash case.

3

McCabe-Thiele method

Graphical binary-column design using rectifying and stripping operating lines plotted against the equilibrium curve, with stages stepped off between them.

4

q-line & feed condition

The q-line represents the thermal condition of the feed (subcooled liquid, saturated liquid, partially vaporized, saturated vapor, superheated vapor) and fixes where the two operating lines intersect.

5

Reflux ratio

The ratio of liquid returned to the column versus distillate withdrawn, total reflux gives the minimum number of stages, minimum reflux gives infinite stages, and the economic optimum lies between them.

6

Reboiler & condenser duty

Energy balances around the reboiler and condenser, connecting distillation directly to the heat exchanger sizing covered in the Heat Transfer guide.

7

Multicomponent shortcut methods

The Fenske equation (minimum stages at total reflux), Underwood equations (minimum reflux), and Gilliland correlation (actual stages at a chosen reflux) for systems with more than two components.

8

Azeotropic & extractive distillation

Handling azeotropes (mixtures where vapor and liquid compositions coincide, blocking simple distillation past that point) using an entrainer or extractive solvent to break the azeotrope.

Essential Formulas

Full formula reference →

αAB=yA/xAyB/xB\alpha_{AB} = \dfrac{y_A/x_A}{y_B/x_B}

Relative volatility, the driving parameter for how easily a binary mixture separates by distillation

y=αx1+(α−1)xy = \dfrac{\alpha x}{1+(\alpha-1)x}

Equilibrium curve for a binary system with constant relative volatility α

yn+1=RR+1xn+xDR+1y_{n+1} = \dfrac{R}{R+1}x_n + \dfrac{x_D}{R+1}

Rectifying-section operating line, R = reflux ratio = L/D

ym=L′V′xm−1−WV′xWy_m = \dfrac{L'}{V'}x_{m-1} - \dfrac{W}{V'}x_W

Stripping-section operating line (L', V' = liquid/vapor flow below the feed stage)

q=heat to vaporize 1 mol of feed at feed-plate conditionsmolar latent heat of feedq = \dfrac{\text{heat to vaporize 1 mol of feed at feed-plate conditions}}{\text{molar latent heat of feed}}

q-line parameter, q = 1 for saturated liquid feed, q = 0 for saturated vapor feed

y=qq−1x−xFq−1y = \dfrac{q}{q-1}x - \dfrac{x_F}{q-1}

q-line equation on the y-x diagram, passing through (xF, xF)

ln⁡(x1x2)/(α−1)  +  ln⁡(1−x21−x1)=ln⁡L1L2\ln\left(\dfrac{x_1}{x_2}\right)\bigg/\left(\alpha-1\right) \;+\; \ln\left(\dfrac{1-x_2}{1-x_1}\right) = \ln\dfrac{L_1}{L_2}

Rayleigh equation for batch (differential) distillation with constant relative volatility

Nmin=ln⁡[xD1−xD⋅1−xWxW]ln⁡αN_{min} = \dfrac{\ln\left[\dfrac{x_D}{1-x_D}\cdot\dfrac{1-x_W}{x_W}\right]}{\ln\alpha}

Fenske equation, minimum theoretical stages at total reflux (Nmin + 1 including the reboiler)

Rmin=1α−1[xDxF−α1−xD1−xF]R_{min} = \dfrac{1}{\alpha - 1}\left[\dfrac{x_D}{x_F} - \alpha\dfrac{1-x_D}{1-x_F}\right]

Underwood shortcut estimate for minimum reflux ratio (saturated liquid feed case)

Visual Reference

000.20.20.40.40.60.60.80.811x (liquid mole fraction)y (vapor mole fraction)equilibrium, α = 2.5xDxWxF
R = 1.5, xD = 0.9, xF = 0.5, xW = 0.1, saturated-liquid feed (vertical q-line) — stepping off stages from xD to xW gives 9 theoretical stages for this example.

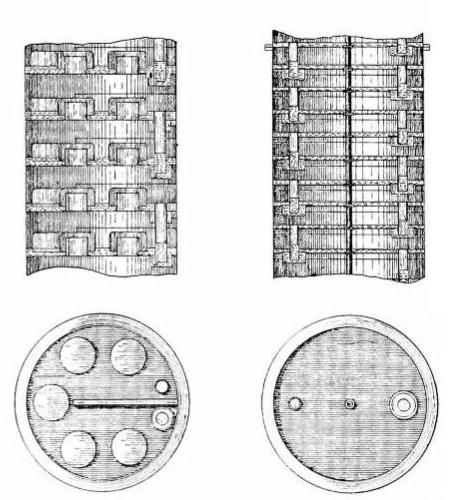

Illustration of a bubble-cap tray and a sieve tray from a distillation column
A bubble-cap tray (left) and sieve tray (right) — the two classic tray types where the vapor-liquid contact this guide's stage-counting relies on actually happens. Jacob Grossmann, Public domain, via Wikimedia Commons.

Derivations & Physical Insight

Why Total Reflux Gives the Minimum Number of Stages

At total reflux, all overhead vapor is condensed and returned as reflux (R → ∞, D → 0), no product is withdrawn. As R grows, the rectifying operating line y = [R/(R+1)]x + xD/(R+1) has its slope R/(R+1) approach 1, and its intercept xD/(R+1) approach 0, so the operating line moves toward the 45° diagonal (y = x). The same thing happens to the stripping line from the other direction.

With the operating lines pushed as far from the equilibrium curve as they can go, each stepped stage captures the largest possible composition change it can. Total reflux is economically useless on its own, since no product ever leaves the column, but that's exactly why it marks the theoretical floor on the number of stages a separation needs. The Fenske equation is just that floor written out as a formula.

Why Minimum Reflux Corresponds to a Pinch Point

As reflux ratio R is reduced from total reflux toward some finite value, the operating lines rotate away from the 45° diagonal and move closer to the equilibrium curve. At some critical reflux ratio, the operating line touches (or the q-line intersects the equilibrium curve exactly at) a point where the operating line and equilibrium curve meet or nearly coincide, a "pinch point" where the driving force (vertical distance between the operating line and equilibrium curve) goes to zero.

At a pinch point, stepping stages requires an infinite number of stages to cross that zero-driving-force region, physically, mass transfer becomes infinitely slow right at that composition, since there's no equilibrium-curve/operating-line gap left to drive it. This is why minimum reflux is defined as the reflux ratio at which the required number of stages becomes infinite, and it sets a hard lower bound: any column must run at R > Rmin, with real columns typically designed at 1.2–1.5 times Rmin as an economic balance between capital cost (fewer, taller stages) and operating cost (more reflux and reboiler duty).

Worked Practice Problems

Original practice problems in the GATE CH style, not copied from any question bank. Work them before reading the solution.

1-mark · NAT

Relative Volatility from Equilibrium Data

Problem: At a certain stage in a distillation column, x = 0.3 and the equilibrium vapor composition y = 0.6, for a binary system with constant relative volatility. Find α.

Given: x = 0.3, y = 0.6, equilibrium relationship y = αx/[1+(α−1)x].

0.6=α×0.31+(α−1)(0.3)0.6 = \dfrac{\alpha \times 0.3}{1+(\alpha-1)(0.3)}
0.6[1+0.3α−0.3]=0.3α  ⇒  0.6(0.7)+0.18α=0.3α0.6\left[1+0.3\alpha - 0.3\right] = 0.3\alpha \;\Rightarrow\; 0.6(0.7) + 0.18\alpha = 0.3\alpha
0.42=0.12α0.42 = 0.12\alpha

Answer: α = 3.5

2-mark · NAT

Minimum Stages via the Fenske Equation

Problem: A binary distillation column must produce a distillate with xD = 0.98 and a bottoms with xW = 0.02, for a system with constant relative volatility α = 2.5. Find the minimum number of theoretical stages using the Fenske equation.

Given: xD = 0.98, xW = 0.02, α = 2.5.

Nmin=ln⁡[xD1−xD⋅1−xWxW]ln⁡α=ln⁡[0.980.02⋅0.980.02]ln⁡(2.5)N_{min} = \dfrac{\ln\left[\dfrac{x_D}{1-x_D}\cdot\dfrac{1-x_W}{x_W}\right]}{\ln\alpha} = \dfrac{\ln\left[\dfrac{0.98}{0.02}\cdot\dfrac{0.98}{0.02}\right]}{\ln(2.5)}
=ln⁡(49×49)ln⁡2.5=ln⁡(2401)0.9163=7.7840.9163= \dfrac{\ln(49 \times 49)}{\ln 2.5} = \dfrac{\ln(2401)}{0.9163} = \dfrac{7.784}{0.9163}

Answer: Nmin ≈ 8.5 theoretical stages (including the reboiler) at total reflux.

Topic-wise PYQ Frequency

High

McCabe-Thiele graphical method

GATE 2025 Q42 tested McCabe-Thiele directly, the most consistently examined distillation numerical style.

Medium

Azeotropic & extractive distillation

GATE 2024 Q14 (azeotropic distillation) and GATE 2026 Q20 (extractive distillation) and Q57 (2025, azeotropes) show this is tested regularly.

Medium

Rayleigh (differential) distillation

GATE 2025 Q54 tested Rayleigh distillation, a recurring batch-distillation numerical.

Medium

Reboiler/condenser duty

GATE 2026 Q47 tested reboiler heat duty, often combined with heat exchanger concepts.

Recommended Study Order

  1. 1

    1. Relative volatility & the equilibrium curve

    The foundation for every distillation calculation, practice reading and constructing y-x equilibrium curves from Antoine-derived vapor pressures first.

  2. 2

    2. Flash distillation

    The simplest multi-equation setup (mass balance + equilibrium) before moving to multi-stage columns.

  3. 3

    3. McCabe-Thiele method (operating lines, q-line, stage stepping)

    The highest-yield subtopic in all of Mass Transfer, practice constructing both operating lines and stepping stages until it's fast.

  4. 4

    4. Reflux ratio & minimum reflux

    A direct extension of McCabe-Thiele, testing the total-reflux and pinch-point limiting cases.

  5. 5

    5. Rayleigh (batch) distillation

    A distinct, self-contained numerical style, study once continuous-column concepts are solid so the two don't get confused.

  6. 6

    6. Multicomponent shortcut methods & azeotropes

    Lowest frequency but conceptually important, a focused review of Fenske/Underwood/Gilliland and azeotrope-breaking strategies is usually enough.

Common Pitfalls

✗ Using the rectifying-line slope R/(R+1) when the stripping section's L'/V' should be used instead, or vice versa.

✓ Always identify which section (above or below the feed stage) a given stage lies in before picking which operating line equation applies.

✗ Forgetting to check the q-line's slope sign, which depends on whether feed is subcooled, saturated, or superheated.

✓ q > 1 (subcooled liquid) and q < 0 (superheated vapor) give q-lines with different slope signs than the common 0 < q < 1 partially-vaporized case, sketch the q-line direction from the feed condition before drawing operating lines.

✗ Applying the Fenske equation (total reflux, minimum stages) when a problem actually specifies a finite reflux ratio.

✓ Fenske gives Nmin only at total reflux; for any finite reflux ratio, use the full McCabe-Thiele stage-stepping method or the Gilliland correlation instead.

✗ Missing that an azeotrope caps how pure a product simple distillation can achieve.

✓ If the problem's equilibrium curve crosses the 45° diagonal, that crossing point is an azeotrope, no amount of additional simple-distillation stages can separate past it without an entrainer or a pressure-swing/extractive approach.

Put It Into Practice

Work the relative-volatility and Fenske-equation problems above, then practice full McCabe-Thiele stage-stepping by hand before checking your approach against the Distillation questions in the full GATE previous-year test set.

Open the Antoine Equation Calculator →Take a Practice Test →

Further reading: How Distillation Columns Actually Work
