What is LMTD in heat exchanger design?

It's the single ΔT value that Q = U·A·LMTD needs to stand in for a temperature gap that's actually different at every point along the exchanger, one number, correctly weighted, instead of guessing which of the two end-gaps (or some average of them) to use. See the full derivation and worked examples below for why a plain average won't do.

How do you calculate LMTD for counter-current flow?

Plug the inlet/outlet temperatures for both streams into the calculator above with "Counter-Current" selected; it pairs each hot terminal with the cold terminal it's adjacent to (not the one directly across from it, that pairing is for co-current) and returns LMTD, ΔT₁, and ΔT₂ automatically, matching how GATE 2025 Q51 sets the problem up.

Why is LMTD used instead of average temperature difference?

Using the arithmetic mean instead would systematically undersize the exchanger, not just approximate it loosely, because it always sits above the true log-mean value whenever ΔT₁ ≠ ΔT₂. Since required area is inversely proportional to that driving force, an inflated ΔT understates A, which is exactly the kind of error a rating calculation can't afford.

When is LMTD equal to arithmetic mean temperature difference?

LMTD equals the arithmetic mean exactly when ΔT₁ = ΔT₂ (the 0/0 case resolves, by L'Hôpital's rule, to LMTD = ΔT). In practice, when ΔT₁ and ΔT₂ are within about 30–50% of each other, LMTD and the arithmetic mean are close enough that some quick estimates use the simpler arithmetic mean as a shortcut.

How do you calculate the required heat exchanger area from LMTD?

Once LMTD is known, the required heat transfer area is calculated as A = Q / (U × LMTD), where Q is the heat duty and U is the overall heat transfer coefficient, as in GATE 2025 Q51.

Why is counter-current flow generally preferred over co-current flow?

Counter-current flow maintains a more uniform temperature difference along the exchanger and can heat the cold fluid above the hot fluid's outlet temperature, which co-current flow can never do. This typically yields a higher LMTD and a smaller, less expensive heat exchanger for the same duty.

When do you need the F-factor correction, and what is it?

The plain LMTD formula is exact only for pure counter-current or co-current flow. Real shell-and-tube exchangers with multiple tube passes have mixed flow patterns, so the design equation becomes Q = U·A·F·LMTD_cf, where F (0 < F ≤ 1) is read from a TEMA chart or computed from the R and S parameters, and LMTD_cf is calculated as if the exchanger were pure counter-current.

Home/Calculators/Heat/LMTD Calculator

GATE 2025, Q51

LMTD Heat Exchanger
Calculator

Calculate log mean temperature difference and required heat transfer area, with step-by-step solutions for GATE exam prep.

Formula

$A = \dfrac{Q}{U \times \text{LMTD}}$

Quick Answer

LMTD (Log Mean Temperature Difference) is the logarithmic average driving force between hot and cold fluids in a heat exchanger, calculated as (ΔT₁ − ΔT₂)/ln(ΔT₁/ΔT₂). This calculator solves LMTD for counter-current or co-current flow instantly, and computes the required heat transfer area A = Q/(U×LMTD), the same calculation tested in GATE 2025 Q51.

LMTD Calculator

$\text{LMTD} = \dfrac{\Delta T_1 - \Delta T_2}{\ln(\Delta T_1/\Delta T_2)}$ · $A = \dfrac{Q}{U \times \text{LMTD}}$

Flow Configuration

Counter-Current Flow

Hot Fluid (shell/tube)

Inlet T_h,in (°C)

Outlet T_h,out (°C)

Cold Fluid (tube/shell)

Inlet T_c,in (°C)

Outlet T_c,out (°C)

Hot →→→ 150°C ━━━━━━━━━━━━ 80°C →→→
←←← 60°C ━━━━━━━━━━━━ 20°C ←←←

\Delta T_1 = 150-60 = 90\,°C \quad \Delta T_2 = 80-20 = 60\,°C

Optional, Calculate Heat Exchanger Area

Heat Duty Q (kW)

Overall U (W/m²·K)

Leave blank to compute LMTD only.

How to Use the LMTD Calculator

1
Choose the flow arrangement
Choose Counter-Current or Co-Current flow.
2
Enter the fluid temperatures
Enter the hot fluid inlet/outlet temperatures (T_h,in, T_h,out) and cold fluid inlet/outlet temperatures (T_c,in, T_c,out). Optionally enter the heat duty Q and overall heat transfer coefficient U to also compute the required area.
3
Click Calculate
Click the Calculate button to compute the LMTD.
4
Read the LMTD result
Read the LMTD, ΔT₁, ΔT₂, and, if Q and U were provided, the required heat exchanger area A = Q/(U×LMTD).

The GATE 2025 Q51 heat exchanger area problem, solved with this calculator, is below, or browse the full GATE ChemE previous year questions collection.

What Is LMTD?

The Log Mean Temperature Difference (LMTD) is the effective driving force for heat transfer in a heat exchanger. Because the temperature difference between the hot and cold streams varies along the exchanger's length, a simple arithmetic average would overestimate that driving force, LMTD is the mathematically correct average that accounts for the variation, calculated as $\dfrac{\Delta T_1 - \Delta T_2}{\ln(\Delta T_1/\Delta T_2)}$ .

It appears in the fundamental heat exchanger design equation $Q = U A \cdot \text{LMTD}$ , which links heat duty, overall heat transfer coefficient, area, and thermal driving force. Rearranged, $A = \dfrac{Q}{U \cdot \text{LMTD}}$ gives the heat transfer area required for a given duty, the calculation this page is built around.

Flow arrangement matters: in counter-current flow the hot and cold streams move in opposite directions (ΔT₁ = T_h,in−T_c,out, ΔT₂ = T_h,out−T_c,in), while in co-current flow they move together (ΔT₁ = T_h,in−T_c,in, ΔT₂ = T_h,out−T_c,out). This calculator solves both arrangements, and, with Q and U supplied, computes the required area, the same calculation tested in GATE 2025 Q51.

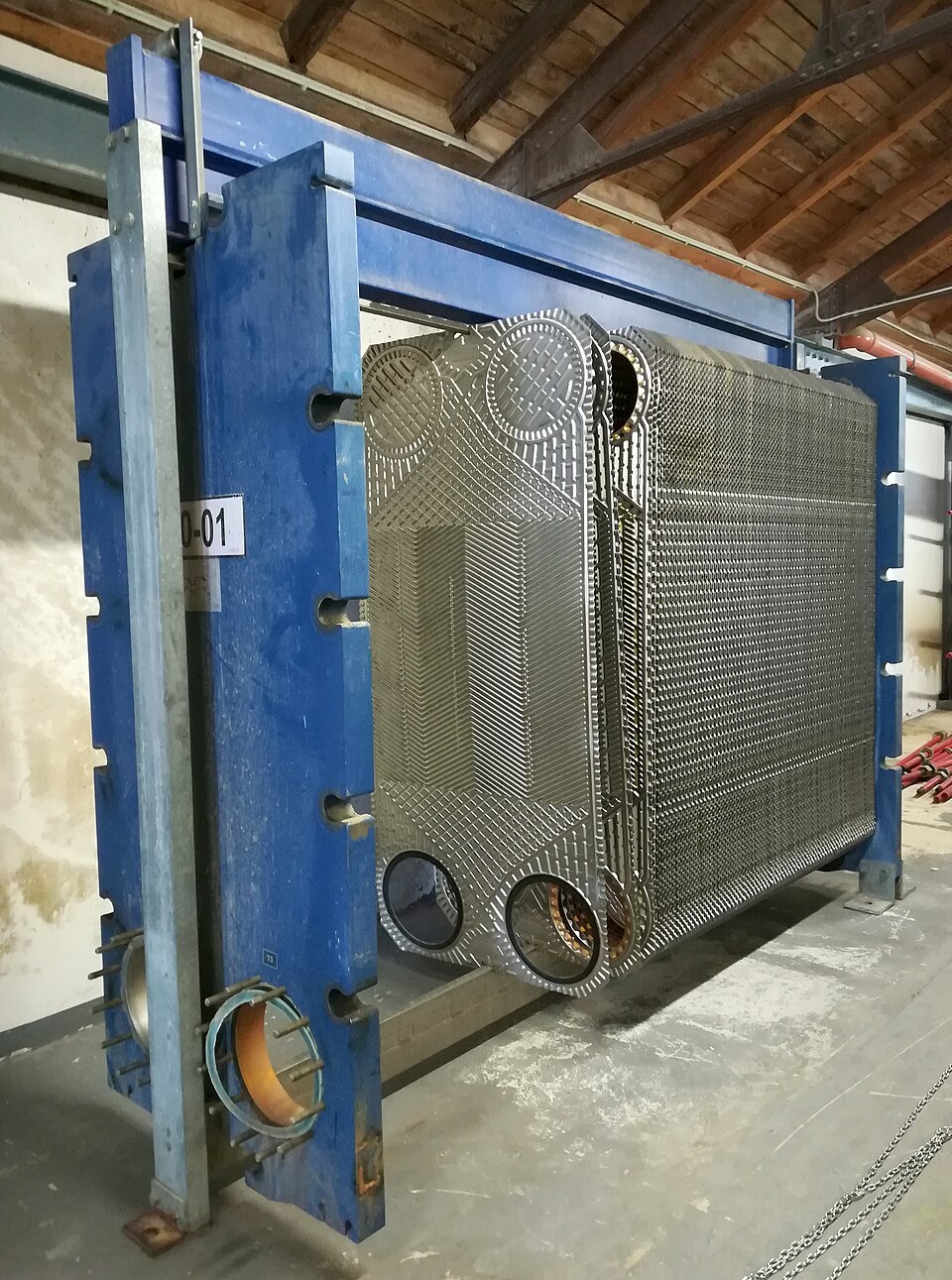

A dismantled plate heat exchanger showing the stacked corrugated metal plates hot and cold streams flow between — A plate exchanger, a different geometry from shell-and-tube, but sized by the exact same Q = U·A·LMTD equation. RomanM82, CC BY-SA 4.0, via Wikimedia Commons.

Derivation: A Differential Energy Balance

LMTD isn't just a convenient average, it falls directly out of a differential energy balance along the exchanger. Consider a thin slice of area dA, across which a local temperature difference ΔT = T_h − T_c drives heat transfer:

dQ = U\,\Delta T\,dA

Each stream's temperature responds to that same dQ: $dT_h = -dQ/C_h$ and $dT_c = -dQ/C_c$ (with the sign convention matched to the flow arrangement), where $C_h = \dot{m}_h Cp_h$ and $C_c = \dot{m}_c Cp_c$ are the heat capacity rates. Subtracting gives $d(\Delta T) = -dQ\left(\dfrac{1}{C_h} - \dfrac{1}{C_c}\right)$ . Since dQ = U·ΔT·dA, this becomes a separable differential equation:

\dfrac{d(\Delta T)}{\Delta T} = -U\left(\dfrac{1}{C_h} - \dfrac{1}{C_c}\right)dA

Integrating from one end of the exchanger (ΔT₁) to the other (ΔT₂) and combining the result with the overall energy balance eliminates the heat capacity rates entirely, leaving:

Q = UA \cdot \dfrac{\Delta T_1 - \Delta T_2}{\ln(\Delta T_1/\Delta T_2)} = UA \cdot \text{LMTD}

The log-mean form isn't an approximation, it's the exact average driving force for an exchanger with constant U and constant stream heat capacities, which is why it slots directly into the same Q = U·A·ΔT framework used for simpler heat transfer problems.

Counter-Current Temperature Profile

ΔT1 and ΔT2 are the literal endpoints of this curve, not two numbers picked in isolation — the local gap between the streams decays log-linearly along the length, never in a straight line.

ΔT1 = 130, ΔT2 = 70 for this example → ΔTlm = (ΔT1−ΔT2)/ln(ΔT1/ΔT2) ≈ 96.9, the local ΔT decays log-linearly along the length, never linearly.

When You'll Need It in GATE Chemical Engineering

LMTD problems on GATE almost always combine this formula with an overall energy balance:

Heat exchanger sizing, given the duty Q and overall coefficient U, find the required area $A = Q/(U \cdot \text{LMTD})$ , or the reverse: given an area, find the achievable duty.
Counter-current vs co-current comparisons, GATE likes to test whether you know ΔT₁ and ΔT₂ flip definitions between the two arrangements, and that counter-current always gives an LMTD at least as large as co-current for the same terminal temperatures.
Multi-pass shell-and-tube exchangers, problems that specify a 1-2, 2-4, or similar TEMA configuration require the F-factor correction, $Q = UAF \cdot \text{LMTD}_{cf}$ , on top of the base LMTD calculation.
Combined mass/energy balance problems, finding an unknown flow rate or outlet temperature first via $Q = \dot{m} Cp\,\Delta T$ , then using that Q to size the exchanger via LMTD.

Three Fully Worked Examples

Example 1: Counter-Current Area Sizing

Problem: Hot oil cools from 140°C to 90°C while heating cooling water from 25°C to 65°C in a counter-current exchanger. Q = 350 kW, U = 450 W/(m²·K). Find the LMTD and required area.

Given: T_h,in=140°C, T_h,out=90°C, T_c,in=25°C, T_c,out=65°C, Q=350 kW, U=450 W/(m²·K), counter-current.

\Delta T_1 = T_{h,in} - T_{c,out} = 140 - 65 = 75\,°C

\Delta T_2 = T_{h,out} - T_{c,in} = 90 - 25 = 65\,°C

\text{LMTD} = \dfrac{75-65}{\ln(75/65)} = \dfrac{10}{0.1431} = 69.9\,°C

A = \dfrac{Q}{U \times \text{LMTD}} = \dfrac{350{,}000}{450 \times 69.9} = \dfrac{350{,}000}{31{,}446}

Answer: LMTD ≈ 69.9°C, A ≈ 11.1 m²

Example 2: Co-Current vs Counter-Current, Same Duty

Problem: For the same terminal temperatures and duty as Example 1, find the area required if the exchanger were arranged co-current instead.

Approach: Co-current pairs the temperatures by inlet-with-inlet and outlet-with-outlet instead of inlet-with-outlet.

\Delta T_1 = T_{h,in} - T_{c,in} = 140 - 25 = 115\,°C

\Delta T_2 = T_{h,out} - T_{c,out} = 90 - 65 = 25\,°C

\text{LMTD} = \dfrac{115-25}{\ln(115/25)} = \dfrac{90}{1.526} = 59.0\,°C

A = \dfrac{350{,}000}{450 \times 59.0} = \dfrac{350{,}000}{26{,}532}

Answer: LMTD ≈ 59.0°C, A ≈ 13.2 m², about 18% more area than counter-current for the identical duty.

Example 3: Multi-Pass Exchanger with F-Factor

Problem: A 1 shell-pass, 2 tube-pass exchanger cools process fluid (shell-side) from 170°C to 110°C while heating water (tube-side) from 30°C to 80°C. Q = 800 kW, U = 600 W/(m²·K). Find the required area.

Approach: Compute LMTD as if counter-current, find R and S, read F off a 1-2 TEMA chart, then apply Q = U·A·F·LMTD_cf.

\Delta T_1 = 170-80 = 90\,°C, \quad \Delta T_2 = 110-30 = 80\,°C

\text{LMTD}_{cf} = \dfrac{90-80}{\ln(90/80)} = \dfrac{10}{0.1178} = 84.9\,°C

R = \dfrac{170-110}{80-30} = \dfrac{60}{50} = 1.20

S = \dfrac{80-30}{170-30} = \dfrac{50}{140} = 0.357

From the 1-2 TEMA chart (R=1.20, S=0.357): F ≈ 0.93

A = \dfrac{Q}{U \times F \times \text{LMTD}_{cf}} = \dfrac{800{,}000}{600 \times 0.93 \times 84.9}

Answer: A ≈ 17.0 m²

Common Mistakes GATE Students Make

Using the arithmetic mean instead of the log mean. $(\Delta T_1+\Delta T_2)/2$ is only a good approximation when ΔT₁ and ΔT₂ are close; otherwise it overestimates the real driving force and understates the required area.
Mixing up ΔT₁/ΔT₂ pairings between flow arrangements.Counter-current pairs hot-inlet with cold-outlet; co-current pairs hot-inlet with cold-inlet. Using the wrong pairing for the stated flow direction is one of the most common errors on this topic.
Forgetting the F-factor for multi-pass exchangers. The plain LMTD formula is only exact for pure counter-current or co-current flow, any shell-and-tube exchanger with more than one tube pass needs the F correction, and skipping it silently understates the required area.
Unit mismatches between Q and U. Q is often given in kW while U is given in W/(m²·K), forgetting to convert Q to watts before dividing throws the area off by a factor of 1000.

Key Takeaways

$\text{LMTD} = \dfrac{\Delta T_1-\Delta T_2}{\ln(\Delta T_1/\Delta T_2)}$ is the exact average driving force for constant-U, constant-Cp exchangers, not an approximation.
Counter-current always gives an LMTD ≥ co-current for the same terminal temperatures, meaning less area for the same duty.
Real multi-pass shell-and-tube exchangers need the F-factor correction: $Q = UAF \cdot \text{LMTD}_{cf}$ , with F ≤ 1.
When ΔT₁ = ΔT₂, LMTD simply equals ΔT (the log-mean limit, via L'Hôpital's rule).
Keep Q, U, and A in consistent units before solving, kW vs W mismatches are the most common silent error.
