GATE 2024 Chemical Engineering, Q59 · Fluid Mechanics

The correct answer is 30.4 to 30.5.

Question

Water of density 1000kg/m31000 kg/m³ is pumped at a volumetric flow rate of 3.14×102m3/s,3.14 \times 10⁻² m³/s, through a pipe of inner diameter 10 cm and length 100 m, from a large Reservoir 1 to another large Reservoir 2 at a height 50 m above Reservoir 1, as shown in the figure. The flow in the pipe is in the turbulent regime with a Darcy friction factor f = 0.06, and a kinetic energy correction factor α=1.α = 1. Take g =9.8m/s2.= 9.8 m/s². If all minor losses are negligible, and the pump efficiency is 100%, the pump power, in kW, rounded off to 2 decimal places, is ______

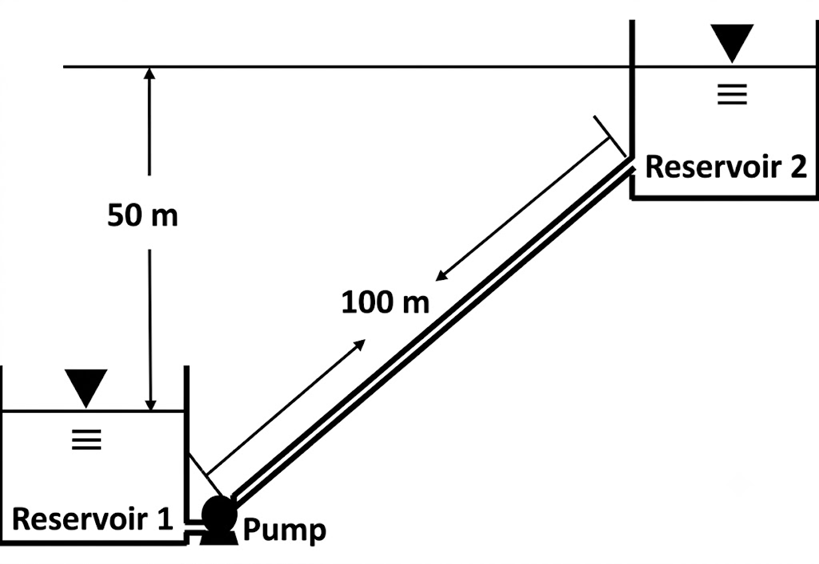

Figure for Q59 (Fluid Mechanics, Pumps): Water of density 1000 kg/m³ is pumped at a volumetric flow rate of 3.14×10⁻² m³/s, through a pipe of…

Official answer: 30.4 to 30.5

Why

GATE 2024 official key: 30.40 to 30.50.v=Q/A=0.0314/(π×0.052)=4.030.50. v=Q/A=0.0314/(π \times 0.05²)=4.0 m/s. hf=f(L/D)(v2/2g)=0.06×1000×(16/19.6)48.98h_{f}=f(L/D)(v²/2g)=0.06 \times 1000 \times (16/19.6)\approx 48.98 m. Total head=50+48.9898.98head=50+48.98\approx 98.98 m. Power=ρgQH=1000×9.8×0.0314×98.9830,460Power=ρgQH=1000 \times 9.8 \times 0.0314 \times 98.98\approx 30,460 W 30.46\approx 30.46 kW.

Explanation cross-checked for consistency. Final answer matches the official IIT answer key.
